ProLink FAQs and HowTos: Inputs and Outputs

The internal ProLink communication between each module is done with standard ethernet cables. The uplink cable has to be able to transfer at least 100Mb/s. The maximum cable length is 100 meters. So yes: it is possible to install a ProLink module away from the cabinet.

Doing so can reduce the cabling cost, since this allows the user to install the ProLink module close to the position of the sensors, which can be far away from the cabinet.

Yes, this is possible with the digital inputs of the vibration module. Both the A and B signals must be connected to the same module. The direction of rotation is determined by the phase shift between the A and B signals. If the A signal leads the B signal, the rotation is in one direction, and if the B signal leads the A signal, the rotation is in the opposite direction. This allows for accurate speed measurement with directional information.

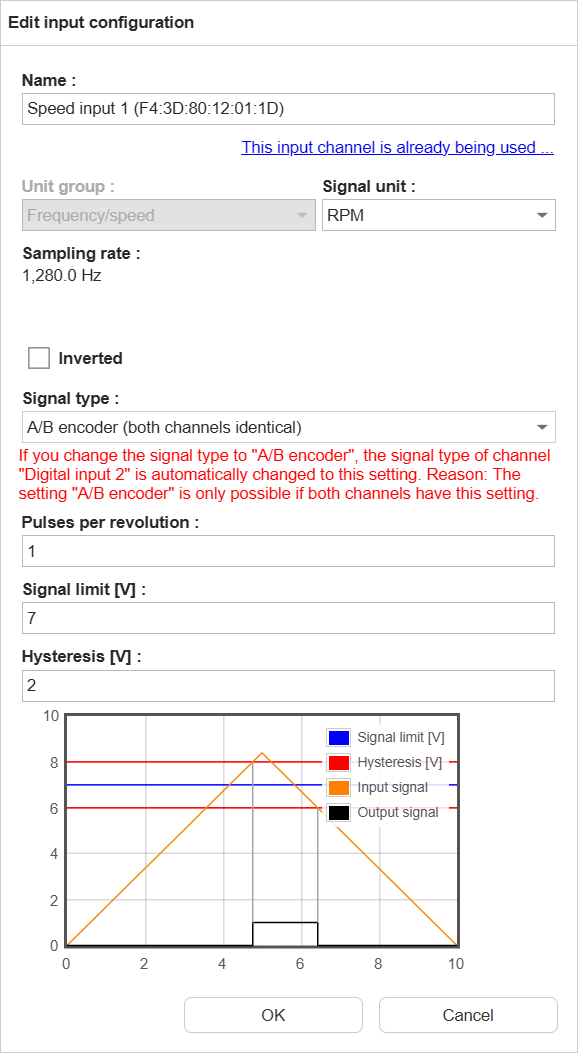

In SmartWeb, edit the input configuration of one of the digital inputs and set the signal type to “A/B encoder (both channels identical”. After that, the user can select either of the two speed channels for the measurement configurations, both will provide the same speed value, with the correct direction information. More information on the other settings of the digital inputs can be found in the manual.

Yes, you can use a combined sensor to measure both vibration and temperature with the ProLink. Directly connect the vibration signal to an input of the vibration module. For the temperature signal, you can use either another input of the vibration module or an input of the I/O module.

The ProLink modules are connected via Ethernet, using the internal network switch in each module. However, there might be situations, where you want to use an external network switch to connect multiple modules together, e.g. when the modules are far apart. This switch must support the precision time protocol (PTP, IEEE 1588v2).

Yes, you can connect any voltage signal to an analogue input of the vibration module, as long as the signal is within the voltage range of the input (±10V). To use an analogue input for a non-vibration signal, you will need to change the input type from “Vibration input” to “Analogue input” and change the unit group from “Vibration” to the appropriate unit group for your signal (e.g. “Temperature”, “Pressure”, etc.). Then set the voltage input and min/max values according to the sensor’s output range.

No, ProLink does not support Power over Ethernet (PoE) according to the IEEE 802.3af Mode A standard. The use of a separate power supply is required to power the device, and the Ethernet cable is only used for data transmission.

The modules of ProLink can be connected in any position and in any order. The order in the cabinet might not match the order of the modules in SmartWeb, but this does not affect the functionality. In SmartWeb, the modules are ordered alphabetically by their name, which is by default the serial number / MAC address of the module. You can change the name of the module in SmartWeb.

No, you can use any speed signal for a measurement job, from the same module as the vibration inputs or from a different vibration module.

Measure the voltage between the two sensor wires. Below 8VDC, it might be mis-polarity, below 1VDC a shortcut and above 20VDC an open wire.

When you have multiple modules installed in your ProLink cabinet, it can be difficult to identify which physical module corresponds to which module in the SmartWeb interface. You can look at the serial number of each module (printed on the label on the side). But this can be difficult or impossible, when the modules are installed in a cabinet or rack.

To help with this, each module has an “identify” function that you can use to make the module’s I/O LEDs blink, making it easy to locate. To do this, click on the green square of the module you want to identify in the SmartWeb interface (on the status screen or the input or output configuration screen. This will start the “identify”-mode.

See the manual for more information.

When a module has to be replaced, for example because it is defective, the following procedure has to be followed to ensure that the measurement jobs will continue to work as before the replacement, i.e. the assigned inputs and outputs in the measurement job are not changed.

Beware: you cannot exchange a module without losing the measurement data on the device.

• Download configuration and measurement data via SmartWeb or SmartUtility to have a backup of the current configuration.
• Power off the ProLink device.
• Disconnect all cables connected to the module to be replaced, build in the new module and reconnect all cables.
• Power on the ProLink device.
• Wait for the SmartWeb to be loaded and both the old (greyed our) and the new module (normal) are displayed on the status page.
• Reload the SmartWeb page, since the automatic refresh might not have detected the new module.
• Delete the greyed-out module (Configuration -> Input configurations -> Select the greyed out module -> Delete)
• Replay the previously downloaded configuration via SmartWeb or SmartUtility.

Replace 2 modules at once:

• In this case the software has to decide, which new module will replace which old module. In this case the new module with the lower serial number will replace the module with the alphabetically lower module name (or serial number if the name was not changed)

See the manual for more information.

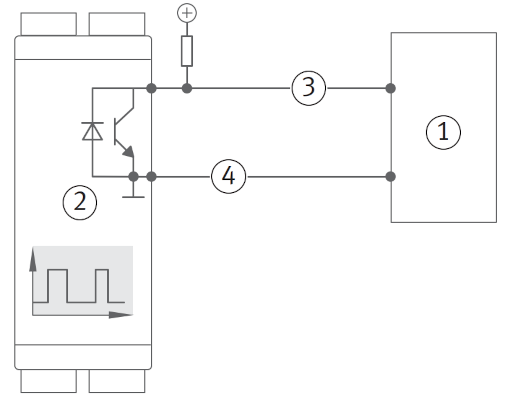

The digital output of the ProLink device is an open collector. This means that it can only pull the output to ground (0V) and cannot provide a positive voltage. To connect a digital input, you will need to use a pull-up resistor, i.e. a resistor that pulls the output to a positive voltage (e.g. 5V or 24V). The value of the pull-up resistor can be between 1kΩ and 10kΩ, depending on the input impedance of the device you are connecting to.

1. PLC
2. ProLink
3. Signal
4. Ground

In general, there are two types of digital sensors: NPN and PNP. The main difference between the two is the way they switch the output signal. NPN sensors switch the output signal to ground (0V), while PNP sensors switch the output signal to a positive voltage (e.g. 5V or 24V).

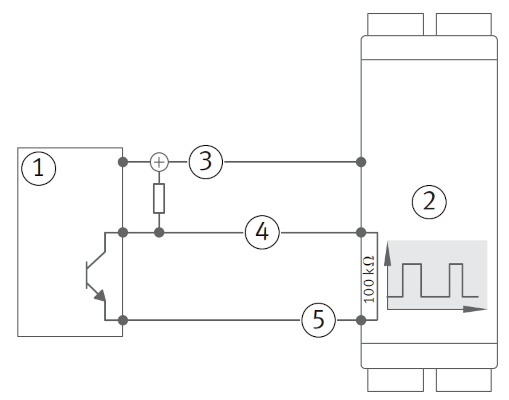

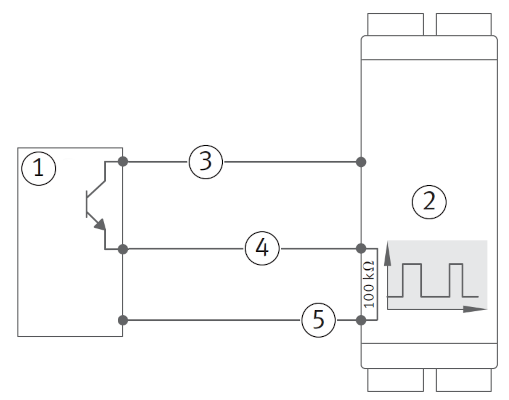

When using a sensor with an NPN output, an external pull-up resistor is needed, which pulls the output to a positive voltage. For this, the supply voltage for the sensor can be used. When using a sensor with a PNP output, no pull-up resistor is needed, since the sensor itself switches the output to a positive voltage. The digital input of ProLink already has an internal pull-down resistor, which pulls the output to ground when the sensor is not active.

NPN	PNP
PLC or sensor with an NPN output ProLink 24V Signal Ground	PLC or sensor with an PNP output ProLink 24V Signal Ground

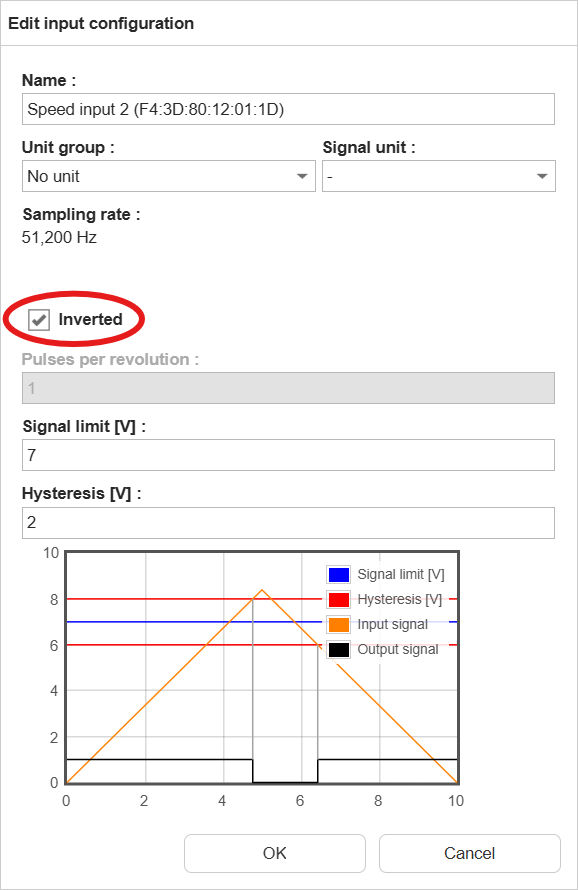

When using an NPN sensor, we advise to invert the input logic in the configuration of ProLink, so that a closed switch corresponds to a high signal and an open switch corresponds to a low signal. This makes it easier to understand the signal and to set up the monitoring configuration.

There are several ways to measure temperature with the ProLink, depending on the type of temperature sensor you want to use. The ProLink supports the following types of temperature sensors:

Vibration module

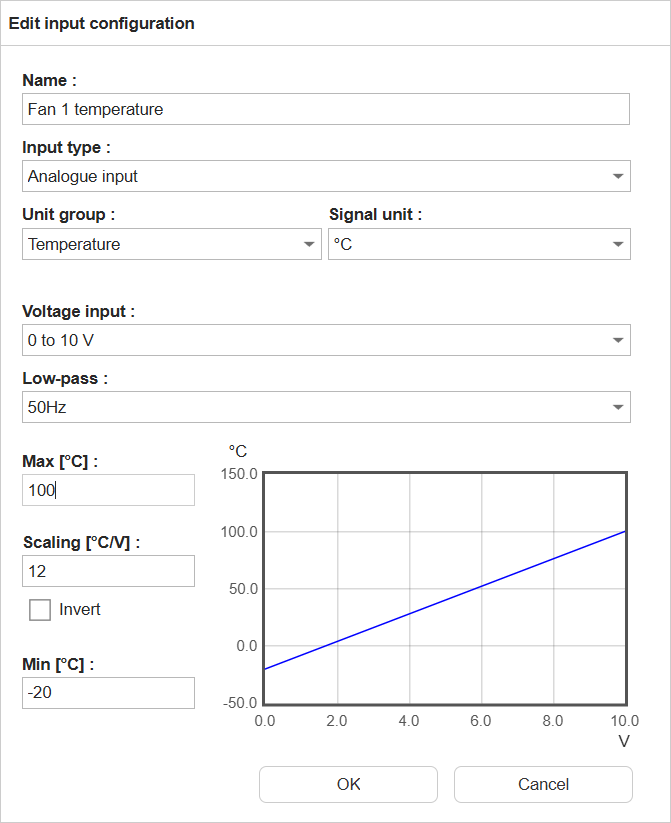

When using an input of the vibration module to measure temperature, the following steps are needed:

1. Check if the input is already in use by a measurement job, measurement trigger or measurement condition. If this is the case, you will need to change the measurement job, trigger or condition to use a different input.
2. Change the input type from “Vibration input” to “Analogue input”.
3. Change the unit group from “Vibration” to “Temperature”.
4. Set the low-pass to 50Hz.
5. Set the voltage input and min/max values according to the temperature sensor’s output range.

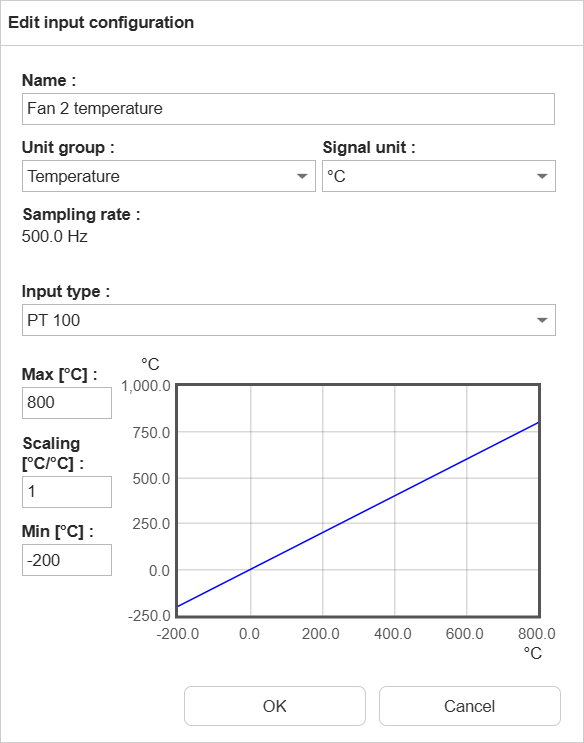

Pt100 / Pt1000 sensors

First check if the I/O channel is set to “Analogue input”. If this is not the case, you will need to change the I/O channel type to “Analogue input” by selecting the I/O module in the input configuration screen and click “Edit”.Then set the unit group to “Temperature” and then set the input type to Pt100 or Pt1000. Then set the correct temperature range for the connected sensor.

If the signal of your IEPE vibration sensor looks like static noise, it could be that the supply current of the sensor is not activated. Please check if the input settings of the vibration input are set to “IEPE” and not to “AC” or “DC”. See the manual for more information.

We recommend a cable length of up to 50m for acceleration sensors. It depends on the quality of the cable, e.g. the shielding, and on the environment, e.g. the electromagnetic interference. If cables are longer, the risk of distortions on the cable and therefore on the sensor’s signal is higher.

ProLink supports IEPE (Integrated Electronics Piezo-Electric) acceleration sensors. In the software you can configure settings like the sensitivity and the bias voltage range.

When configuring the inputs of the vibration module, you can choose from 3 options:

1. IEPE: use this when you have an IEPE sensor, i.e. a sensor that needs a constant current supply.
2. AC: use this when you have a signal that is already conditioned, e.g. from a charge amplifier or an integrated sensor with built-in signal conditioning, or an output from a PLC. AC means, that any DC offset is removed from the signal, so you only measure the alternating part of the signal.
3. DC: use this when you have a signal that is already conditioned, e.g. from a charge amplifier or an integrated sensor with built-in signal conditioning, or an output from a PLC. DC means, that you measure the full signal including any DC offset. DC is typically used for signals which only change very slowly, or where the absolute value is needed, like temperature or speed.

When selecting IEPE, the current supply for the sensor is activated. Make sure to only use IEPE sensors on these inputs, as other sensors might be damaged by the constant current supply. This also activates the monitoring of the sensor’s supply voltage, which is used to detect cable issues or a disconnected sensor. The allowed voltage range, which is different for each sensor (type), can be defined in the input settings under min/max bias voltage (see manual, vibration module dialogue). When the voltage on the sensor cable is below this value, then there is a short-circuit in the sensor or cable. Is it above, then the cable is broken or no sensor is connected (open loop). When no signal or sensor is connected to the input, selecting IEPE will always show the input / sensor as defective.

When selecting AC or DC, no current supply is activated. These settings can be used with any sensor or signal source.

We supply short network cables for the connections between the modules. However, if you need to use longer cables, you can use standard Ethernet cables (Cat5e or higher).

Important: Please use flexible network cables rather than rigid or sturdy cables. Stiff cables can put mechanical strain on the network sockets of the modules, potentially causing damage over time. Flexible cables help prevent stress on the connectors and ensure reliable connections.

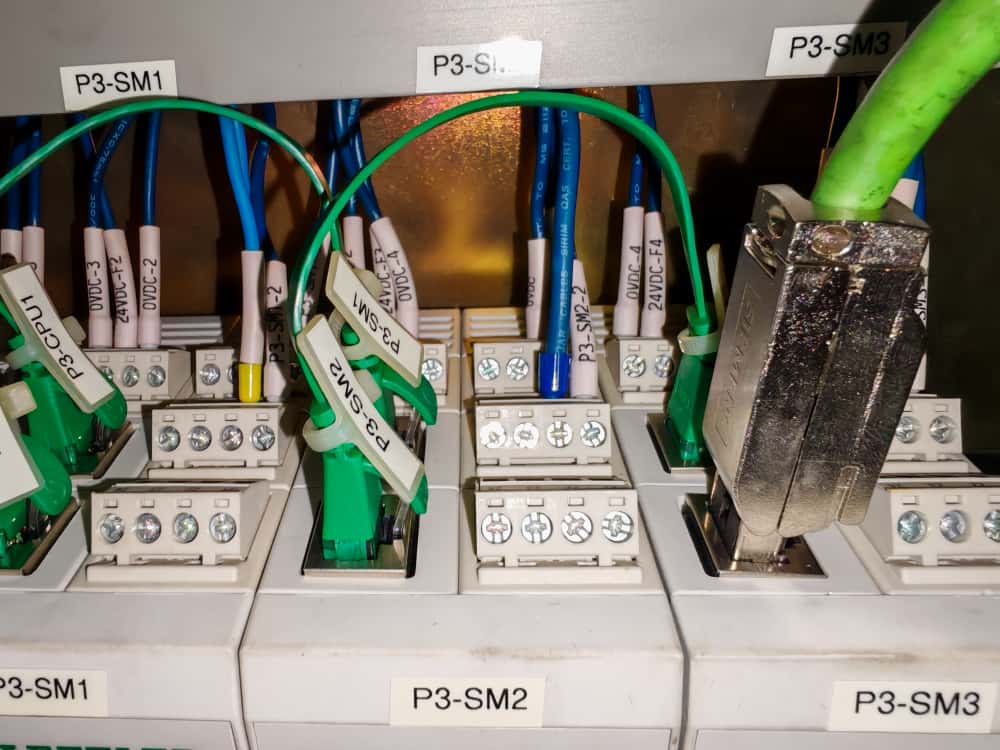

For example, do not use stiff industrial cables with big network connectors, as these are too rigid and will apply excessive mechanical stress to the module sockets. The following picture shows an example of an otherwise very good-looking installation. As you can see, the network socket is bent and damaged due to the use of a stiff cable.
